Feature

• Integration of blocks and ballscrew nuts enable space-saving.
• The two rows of Gothic-arc groove and contact angle of 45°can simultaneously bear the loading in four directions.

Use

IC・LSI manufacturing machine / hard disk drive / OA equipment slide unit / Wafer transfer device

【Ball screw/Belt Actuators ELGD】

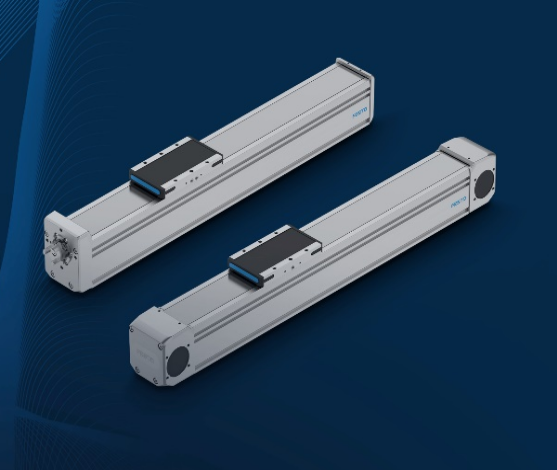

As a successor model to ELGA series, the powerful ELGD actuator series consisting of ball screw actuators ELGD-BS and belt actuators ELGD-TB are optimal products for automation tasks in electric mechanism. The spec difference between ELGD and ELGA is that ELGD's structure of linear guideway has been modified and the moment of ballscrews has been strengthened. Also, the parts that contact with the stainless sheet cover has been removed making the ELGD series frictionless and easier to use in the clean environment.

High Accuracy: Ball screw actuators ELGD-BS
Available in 10 different sizes which including the standard type in six widths from 30 to 160 mm, and the wide type in four widths from 100 to 220 mm.
The maximum stroke is 2.5 m and two different table sizes are available.

High dynamic performance: Belt actuators ELGD-TB
Available in 10 different sizes which including the standard type in six widths from 30 to 160 mm, and the wide type in four widths from 100 to 220 mm.
The maximum stroke is 8.5 m. Various table options are available.

LA series Screw-type Linear Actuator

Stroke: 50/75/100mm MAX
Thrust: 1kgf
Speed: 13.1 ～ 28.5mm/sec

LC series Belt-type Linear Actuator

Stroke: 300/500/700m MAX
Thrust: 1.0 ～ 4.0kgf
Speed: 5 ～ 360mm/sec

LD series Screw-type Linear Actuator

Stroke: 200/300/400/500mm MAX
Thrust: 1.0 ～ 10.0kgf
Speed: 0.5 ～ 65mm/sec
