S-Con mini

S-Con mini is used for transportation between processes in production line, and also used for junction with production, pressing, forming and wrapping machine and transportation in assembling, testing and wrapping line . It corresponds to varying demands.

KIREI／SANI-VEA

This belt conveyer is made of stainless to wash easily in water. Antibacterial polyurethane belts and net belts are available to correspond to transportation of unpackaged foods. It supports HACCP powerfully.

Vertical Continuous Transfer Machine Vertilator

This product can simply and continuously transport a large quantity of goods in short time between two points. Vertical transfer system “Vertilator” with advantage of an escalator and a conveyer is one of the most standard vertical transport system sold for long time with high reliability. Because it is easy to construct a three-dimensional continuous transfer line by combining various types of conveyers, Vertilators with excellent capability are used not only in warehouses and delivery centers, but also in all kinds of distribution facilities.

Vertical Sorting Transfer Machine High-Tray

This product achieves random transfer across multiple floors for multi-variety production and distribution. Vertical transfer system “Autolator” with advantage of elevator and conveyer enable fast transfer to optional floor with one button. Automatic in and out of objects reduce loss to heighten efficiency compared with elevator for baggage. High-Tray correspond to multi-kind variable transfer required at recent high-risen distribution center, factory and large shopping center.

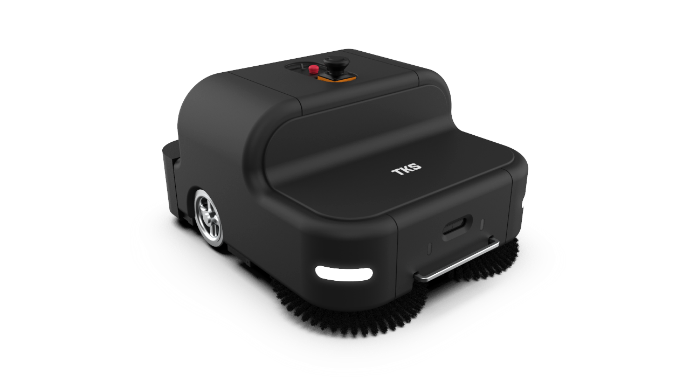

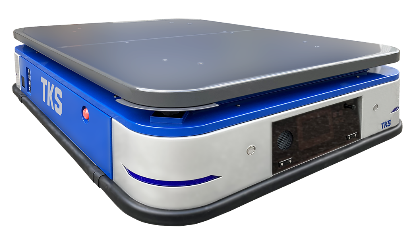

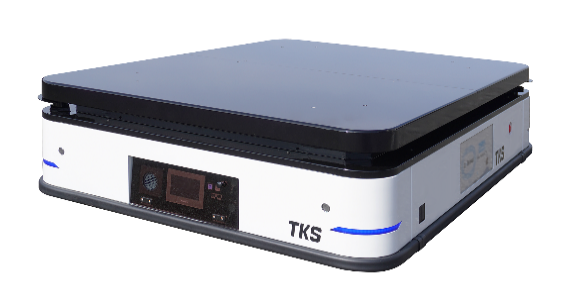

KeiganALI is a compact autonomous mobile robot with a 30kg payload capacity, which is easy to use and introduce.
It is highly customizable and can be used in a variety of situations.

Product Features

1. 1Autonomous Travel
   Equipped with a laser scanner and multiple obstacle sensors, KeiganALI can automatically transport luggage while avoiding moving objects such as people or obstacles.
   KeiganALI can not only travel without the use of a guide by using input map information, but it can also accurately travel by following along marked lines on the floor.
2. Easy to Use
   Setting up KeiganALI is very simple. From the map setting to the autonomous travel, it is very easy to do. Setting up can be done quickly by using your smartphone, tablet or computer.
   You can reset KeiganALI quickly corresponding to the change of layout and operational procedure on the go.
   Map and task setting can be done with use of the web application intuitively.
3. Versatility and Flexibility
   KeiganALI can be used and operated in a variety of places and situations with upper attachments suitable for each KeiganALI.
   KeiganALI can be used as an conveying robot, inventory management robot using RFID reader, serving robot and much more. It is also possible to link KeiganALI and upper attachments with GPIO, making the upper attachment move by receiving the instruction from KeiganALI.

*KeiganALI is a product of Keigan Inc.
*KeiganALI is sold only in Japan.

Accurate Feeder

Material feeding at wide range including powder, granule, pellet and flake.
Used at chemistry, plastic, chemical fertilizer, food, water processing, steel and cement fields.。

Features

Outer agitation system. Adoption of flexible hopper at feeder. (Registration of Trademarks: Tuf-Flex)
Two paddles on both sides of a hopper push the hopper continuously to prevent bridge and rathole. This system enables high-accuracy feeding of the screw-type powder feeder.

・Accurate Feeder Specification

Model		100	300	600	900
Supply Range 　min(10RPM) 　max(160RPM)		0.04ℓ/h 18ℓ/h	0.1ℓ/h 122ℓ/h	1.1ℓ/h 1,400ℓ/h	36.6ℓ/h 7,000ℓ/h
DC motor		1/45HP	1/7HP	1/4HP	3/4～1HP
AC motor		-	90W	200W	-
Adjustable Speed Range		1:10	1:10	1:10	1:10
(AC motor)			(10～100Hz)	(7.3～73Hz)
Power Supply		AC110V Single Phase	AC110V 220V Single Phase	AC110V 220V Single Phase	AC220V Single Phase
(AC motor)			(AC200V Three Phases)	(AC200V Three Phases)
Main Material		SUS304 FDA vinyl
Flexible Hopper Capability		2ℓ	9ℓ	25ℓ	80ℓ
Standard Extension Hopper Capability		-	35ℓ	75ℓ	-
Weight		6kg	28kg	64kg	250kg
(with Extension Hopper)			(38kg)	(84kg)
