i-PRO Brand Outdoor Multi-Sensor Camera (Quad-Camera)
WV-S8574LUX

• 360° coverage, 4K image sensor, AI processing camera
• Continuous view assistance automatically adjusts the quad-camera angles of views.
One camera can monitor with a minimum blind spot.
• 4 camera units allow you to adjust each camera angle of view independently.
• The industry thinnest* multi-sensor camera being fitted in both inside and outside the facility (3.5 inches/90 mm)
  *As of February 2022, based on i-PRO own research
• With AI Engine, it can install and use up to 4 different types of AI Apps all together.
  Continuous view assistance makes easy installation.

i-PRO Brand Network Video Recorder
WJ-NU301 Series

• Built-in PoE+ switch not only enables its slim design, but also easy installation and operation without PC.
• You can record image and sound to HDD up to 16 cameras.

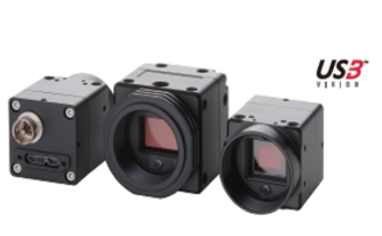

USB3.0 Model

Description　USB3.0 Compact CMOS Camera
Features　Sony CMOS “Pregius” adopted cameras are available.
　　　　 　High-pixel and high-speed CMOS sensors are adopted.
　　　　　 Compact, strong and easy mounting

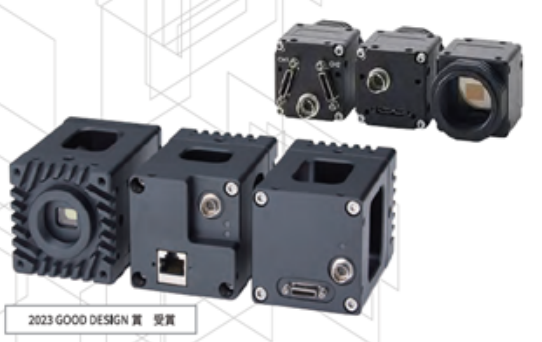

USB2.0 Board Model

Description　One Thin Board Type USB2.0 Camera
Features　This model is ideal for narrow and limited space mounting.
　　　　　The camera reset function enables restoration after unexpected accident.
　　　　　Lens are selectable from CS mount type, fixed focus lens and lens-less.

PCIe-GIE7x Series

2/4-CH PCI Express® GigE Vision PoE+ Frame Grabbers with PoE Power Management & Protection, ToE and Software License Management

Key Features
PCI Express® x4 compliant
Support for 2/4 independent Gigabit Ethernet ports
IEEE 802.3at for PoE+ (Power over Ethernet Plus)
PoE protection and automated power budget control for enhanced asset protection Easy-to-use utility and API provided for PoE power management
Multiple cards, multiple cameras, in a single system
Wide operating temperature range from 0℃ to +70℃, supporting non-drop frame capture in extreme environments
Up to 20/60/120W PoE power from PCIe bus/4-pin/6-pin Molex connector

PCIe-U304/308/312

• PCI Express x4 Gen2 compliant
• Compliant with USB 3.1 Gen 1 (identical to USB 3.0), Host Controller, Fresco FL1100
• 4/8 USB Type-A external ports (PCIe-U304/U308)
  4 additional internal USB 3.0 ports by pin headers (PCIe-U312 only)
• Up to 18W USB power from PCIe bus (default)
  Up to 60W USB power supported by 4-pin Molex power connector
• Up to 1500mA max. current per port
