Industrial PC and Server
Power Assist Products
Embedded PC
PA1170-4GT (Tower Type)
Long-term stable operation model aiming to mount on equipment.
| BTOCPU | Core i7 7700 3.4GHz |
| BTOstandard memory | 4GB (DDR4 2133) Max. 64GB |
| Chipset | Q170 |
| VGR | intel HD Graphics 630 (shared with main memory) |
| VRAM容量 | capacity Shared |
| Video Output | RGBx1,DPx3 |
| Expansion Slot | PCI-Ex16 Slot x1(1), PCI-Ex8 Slot x1(1), PCI-Ex4 Slot x1(1), PCI-Ex1 Slot x1(1), PCI Slot x3(3) |
| I/O | PS/2 x1, USB2.0 x2 (Front), USB3.0 x4 (Rear), Serial Port x2 (RS-232C), 10/100/1000BASE-T x2, S-ATA x6 |
| BTOHard Disk | 3.5" SATA 1TB ｘ1 |
| Optical Drive | DVD multi-drive |
| Sound Function | HD Audio (on-board) |
| Chassis | Middle-Tower Type W190mm X H415mm X D445mm |
| Power Supply | Rated Input Voltage: AC100V - AC240V Input Frequency: 50Hz/60Hz Rated Capacity: 350W (peak: 500W) |
| Cooling Fan | Exhaust: 120mm x 1 unit |
| BTOkeyboard | (option) selectable from 104 English keyboard/109 Japanese keyboard |
| BTOmouse | （option) Optical Wheel Mouse (USB connection) |
| BTOOS | (option)Windows 7 Professional (32/64 bit) Windows 7 Ultimate (32/64 bit) Windows EMB STD 7P (32/64 bit) Windows 10 Professional (32/64 bit) Windows 10 IoT Enterprise LTSB 2016 (32/64 bit) |
| BTOoptions | RAID 1, Remote-Start Interface |
| Environmental Condition | Temperature: 10℃ - 35℃ Humidity: 20% - 80% (no condensation) |
| Safety Standard | CE: conformed RoHS Directive: conformed |
| Supply Term | 2029/Q4 (Depending on market environment, the supply period of memory and HHD may change.) |

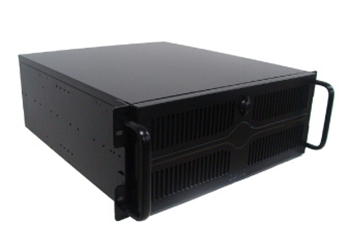

PA2600-SM-ER2（Rack-Mount Type)）
| BTOCPU | E5 2637V4 3.5GHz X 2 |
| BTOstandard memory | 16GB (DDR4 2133 ECC SDRAM 72bit) Max. 512 GB |
| Chipset | intel C612 |
| VGR | ASPEED AST2400 BMC |
| VRAM Capacity | Shared |
| Video Output | D-Sub15x1 |
| Expansion Slot | PCI-Ex16 Slot x1(1), PCI-Ex8 Slot x3(3), PCI-Ex4 (Gen3) Slot x1(1), PCI-Ex4 (Gen2) Slot x1(1) |
| I/O | USB2.0 x4 (two of them are on front), USB3.0 x2, Serial Port x1 (RS-232C), 10/100/1000BASE-T x2, S-ATA3 x10 BTO Hard Disk |
| BTOHard Disk | 3.5” SATA 1TB (removable HDD case built in) x1 |
| Optical Drive | DVD multi-drive |
| Sound Function | - |
| シャーシ | 4U Rack-Mount W482mm X H177mm X D566mm (without protrusion) |
| Power Supply | Rated Input Voltage: AC100V ? AC240V Input Frequency: 50Hz/60Hz Rated Capacity: 822W (peak: 1000W) |
| Cooling Fan | Exhalation: 120mm x 1 unit Exhaust: 80mm x 2 units |
| BTOOS | (option)Windows 7 Professional (32/64 bit), Windows 7 Ultimate (32/64 bit), Windows EMB STD 7P (32/64 bit), Windows 10 Professional (32/64 bit), Windows 10 IoT Enterprise LTSB 2016 (32/64 bit) |
| BTOoptions | RAID 1, GPU (ELSA TESRA K40) |
| Environmental Condition | Temperature: 10℃ - 35℃ Humidity: 20% - 80% (no condensation) |
| Safety Standard | CE: conformed RoHS Directive: conformed |
| Supply Term | 2021/Q4 (Depending on market environment, the supply period of memory and HHD may change.) |
FAC-1500T（Front Access Type）
| BTOCPU | Core i5 6500 3.2GHz |
| BTOstandard memory | 4GB (DDR4 2133) Max. 64 GB |
| Chipset | intel Q170 |
| VGR | intel HD Graphics 530 |
| VRAM Capacity | Shared |
| Video Output | D-Sub 15x1, DVIx1, HDMIx1, DPx1 |
| Expansion Slot | PCI-Ex16 Slot x1(1), PCI-Ex4 Slot x1(1), PCI Slot x2(2) |
| I/O | PS/2 x1, USB2.0 x2 (front), USB3.0 x4 (rear), Serial Port x2 (RS-232C), 10/100/1000BASE-T x2, S-ATA x6 |
| BTOHard Disk | S-ATA 500GBx1 |
| Optical Drive | DVD multi-drive (Slim type) |
| Sound Function | HD Audio |
| Chassis | Front Access W280mm X H155mm X D292mm (horizontal posture) |
| Power Supply | Rated Input Voltage: AC100V - AC240V Input Frequency: 50Hz/60Hz Rated Capacity: 300W (peak: 400W) |
| Cooling Fan | Exhalation: 92mm x 1 unit |
| BTOkeyboard | (option) Selectable from 104 English keyboard/109 Japanese keyboard |
| BTOmouse | (option) Optical Wheel Mouse (USB connection) |
| BTOOS | (option) Windows 7 Professional (32/64 bit), Windows EMB STD 7P (32/64 bit), Windows 10 Professional (32/64 bit), Windows 10 IoT Enterprise LTSB 2016 (32/64 bit) |
| BTOoptions | - |
| Environmental Condition | Temperature: 10℃ - 35℃ Humidity: 20% - 80% (no condensation) |
| Safety Standard | CE: conformed RoHS Direction: conformed |
| Supply Term | 2029/Q4 |
*Regarding 'BTO' notation in the table above, please let us know the required specifications. We can propose the best product for your demand.
We have some old models in stock. Please contact us if you need a replacement.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
ADLINK Product
Fan-less Computer

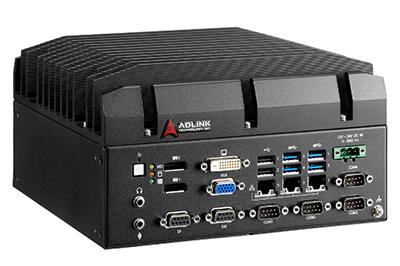

MVP-5000 series (no expansion slot)
Value Family 6th Generation IntelR Core i7/i5/i3 Processor-Based Fanless Embedded Computer (Code name: Skylake)
・Fan-less computer of 6th generation. UL, CE and KC-compliant products are available.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp

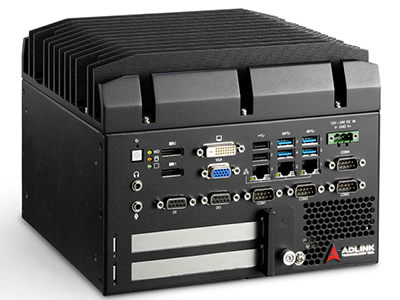

MVP-6000 series (2 expansion slots)
Value Family 6th Generation IntelR Core i7/i5/i3 Processor-Based Expandable Fanless Embedded Computer
・Fan-less computer with the 6th generation expansion slots. UL, CE and CCC-compliant products are available.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp

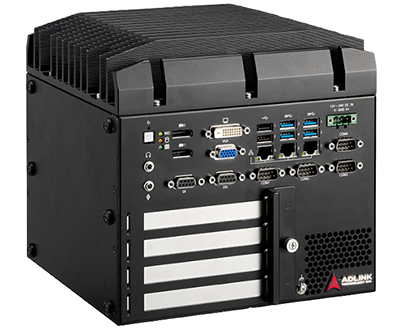

MVP-6010/6020 series (4 expansion slots)
Value Family 6th Generation IntelR Core i7/i5/i3 Processor-Based Expandable Fanless Embedded Computer
・Fan-less computer with the 6th generation expansion slots. UL, CE and CCC-compliant products are available.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
Logitec INA Solutions Products
Tablet PC

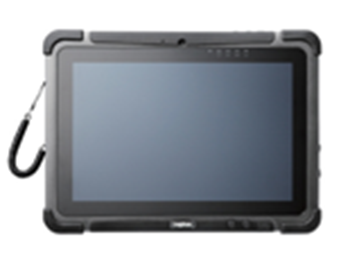

LT-WMT10 series
ZEROSHOCK TABLET 10.1 inches shock-resistant Tablet PC
- Pass the 1.2m drop impact test (non-operating state)
- Dust and water-proof design enable the operation under bad environment. (Entire surface is IP65-compliant.)
- These products can be used in the cold region or under the blazing sun, from minus 10℃ to 50℃.
- You can use these tablets even if you wear gloves at construction or distribution sites.
- Compatible with Windows® 7 and Windows® 10 respectively.
- In production until 31/03/2020
*CPU is selectable from Core i5 or Celeron. This series has several models with built-in wireless WAN of other companies.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
Touch Panel PC

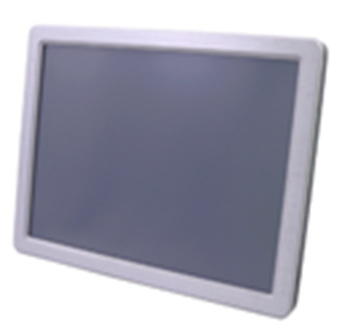

LKM-JT12
Resistive-Film Type touch panel PC of LCD size 12.1 inches. The predictive maintenance system minimizes operation stops.
- This can predict service life of parts from usage and environment.
- Notifications about the planned replacement schedule help its operation continue.
＊We can introduce a touch panel PC of other size or with capacitance touch panel or expansion card slot. Please contact us.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
Fujitsu Products
Server

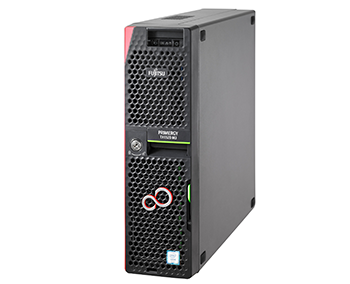

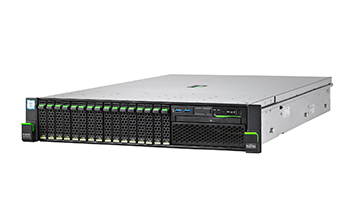

FUJITSU Server PRIMERGY
FUJITSU PC Server PRIMERGY is particular about original design, production, introduction and operation developed by the human engineering research for customers comfortable use. 24/7 operation of servers is one of the most important issues for ever-improving internet system and mission critical system. With thorough design verification, strict quality management and server management function at all phases such as design, production, introduction and operation, FUJITSU PC Server PRIMERGY has been pursuing the high reliability.
Documentation for this product
We are commited to quality.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
iBASE Products
Digital Signage Player

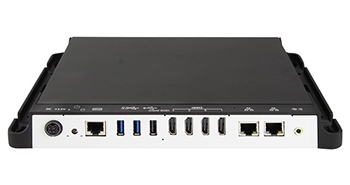

SI-324
AMD Ryzen™ Embedded V-Series Zen Core-based Digital Signage Player with AMD Vega GPU and Four HDMI
・Digital signage players using the AMD Ryzen™ V-Series. Four HDMI can be connected.

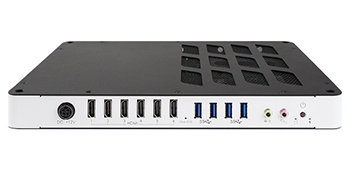

SI-626
7th/6th Gen Intel® Core™ Mobile Processor-based Signage Player with AMD Radeon™ E8860 Graphics and Six HDMI
・Digital signage players adding AMD Radeon? E8860 Graphics to 6th/7th generation IntelR Core? Mobile. Four HDMI can be connected.

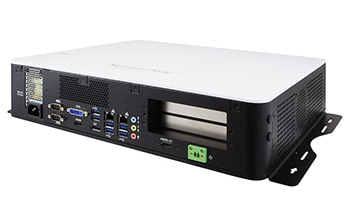

SI-61S
7th/6th Gen Intel® Core™ Desktop Processor-based Video Wall Player with 1 x PCI-E(x16) or 2 x PCI-E(x8) Slots
・Digital signage players adding the expansion slots to 6th/7th generation IntelR Core? Desktop Processor.
For inquiries about this product
03-6834-2600 sales@toamec.co.jp
ADVANET Products
Gateway

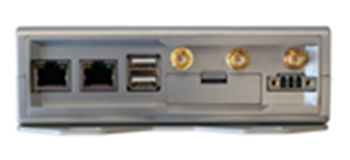

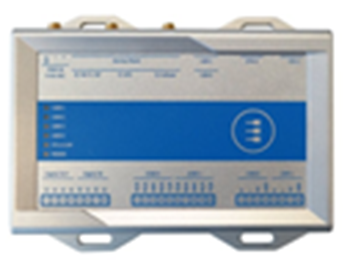

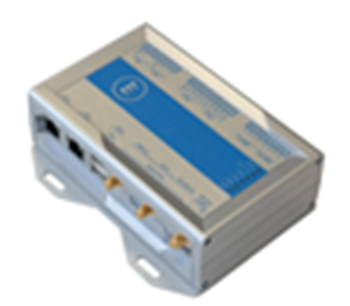

ReliaGATE 10-11
IoT Gateway with TI’s AM3352 8000MHz. Various types with the I/F of temperature or acceleration are also available.
Yocto Linux is adopted as OS.
