Linear Guideway

PMI Products

Linear Guideway (Full Ball Type)

リニアガイド(フルボールタイプ) リニアガイド(フルボールタイプ)

Feature

  • Four circular-type rows enable self-alignment and facilitation of mounting adjustment.
  • The ball circulation unit made of synthetic resin enables smooth movement and low noise.
  • Possible to freely combine rail and block among the same size.
  • MSA, MSB and SME (size 15-30) of standard grade (N), light preload (FC) and dust-proof seal (SS) are in stock.

Lineup

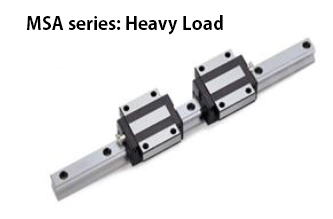

  1. MSA series :Heavy Load Size: 15-65 Length: MAX 4,000mm

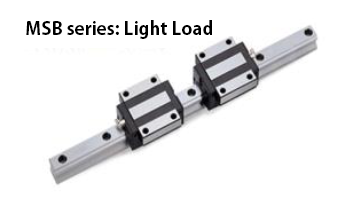

  2. MSB series :Light Load Size: 15-35 Length: MAX 4,000mm
  3. SME series :Ball Chain New!! Heavy Load Size: 15-45 Length: MAX 4,000mm
  4. MSC/MSD series :Miniature Size: 7-15 Length: MAX 1,000mm
  5. MSG series :Wide Size: 21-35 Length: MAX 3,000mm
  6. MSH series :Cross Linear Guide Size: 20-30 Length: MAX 3,000mm
  7. SMH series :Ball Chain type Cross Linear Guideway Size: 45 Length: 3,000mm

Linear Guideway (Roller Type)

リニアガイド(ローラータイプ) リニアガイド(ローラータイプ)

Feature

  • Since line contact via rollers reduce the amount of elastic deformation, Roller Type is ideal for precision operation at heavy load processing.
  • Through the structural stress analysis by the finite element method (FEM), the roller of four rows gets high-rigidity design with 45° contact angle.

Lineup

  1. - MSR series : Full Roller Size: 25-65 Length: MAX 4,000mm
  2. SMR series : Ball Chain New!! Full Roller Size: 25-65 Length: MAX 4,000mm

Documentation for this product
CAD http://www.pmi-amt.com/jp/support/download_cad.html

For inquiries about this product
03-6834-2600 sales@toamec.co.jp

Nippon Bearing Products

Slide Way・Gonio Way

スライドウェイ・ゴニオウェイ

Feature

Slide Way is a non-recirculating linear motion bearing utilizing precision rollers. Because of high accuracy and minimum frictional resistance, it shows a high effect as component of the most advanced mechatronics field. There are many variations, Slide Table putting Slide Way between table and bed, Gonio Way standardized Slide Way to the curve shape, and so on.

  • Slide Way
    NB Slide Way is a non-recirculating linear motion bearing utilizing precision rollers. These are used in optical and measurement equipment where high precision movement is required.
  • Gonio Way
    Gonio Way is a low friction and non-recirculating curved motion bearing utilizing precision cross-rollers. These are used in optical and measurement equipment where high precision movement is required.

Documentation for this product
Slide Way http://www.nb-linear.co.jp/product/lineup/slideway/slideway.html
Gonio Way http://www.nb-linear.co.jp/product/lineup/slideway/gonioway.html

For inquiries about this product
03-6834-2600 sales@toamec.co.jp
